R-8 HVAC Duct Wrap Insulation - 4' x 50' (200 Sq Ft)

Name: R-8 HVAC Duct Wrap Insulation - 4' x 50' (200 Sq Ft)
Brand: Ecofoil
SKU: EF2280-48-050
Price: 178.0 USD
Availability: InStock

SKU: EF2280-48-050

Prevents heat from radiating into or out of duct systems

$178.00

Sale Sold out Free Shipping!

Quantity

Accepted payments:

Ships today when you order in the next 5 hours 10 minutes

Product details:

EcoFoil "Big 8" HVAC Duct Insulation Wrap (R-8) is specifically designed to reduce radiant heat gain and loss in residential and commercial duct applications. This insulation wrap also helps control condensation by providing an airtight thermal break around the HVAC ducting. Important - All seams must be taped so the insulation acts as a vapor barrier. We recommend taping the seams of the HVAC duct insulation with EcoFoil Premium High Tack HVAC Tape, so the product acts as one continuous sheet.

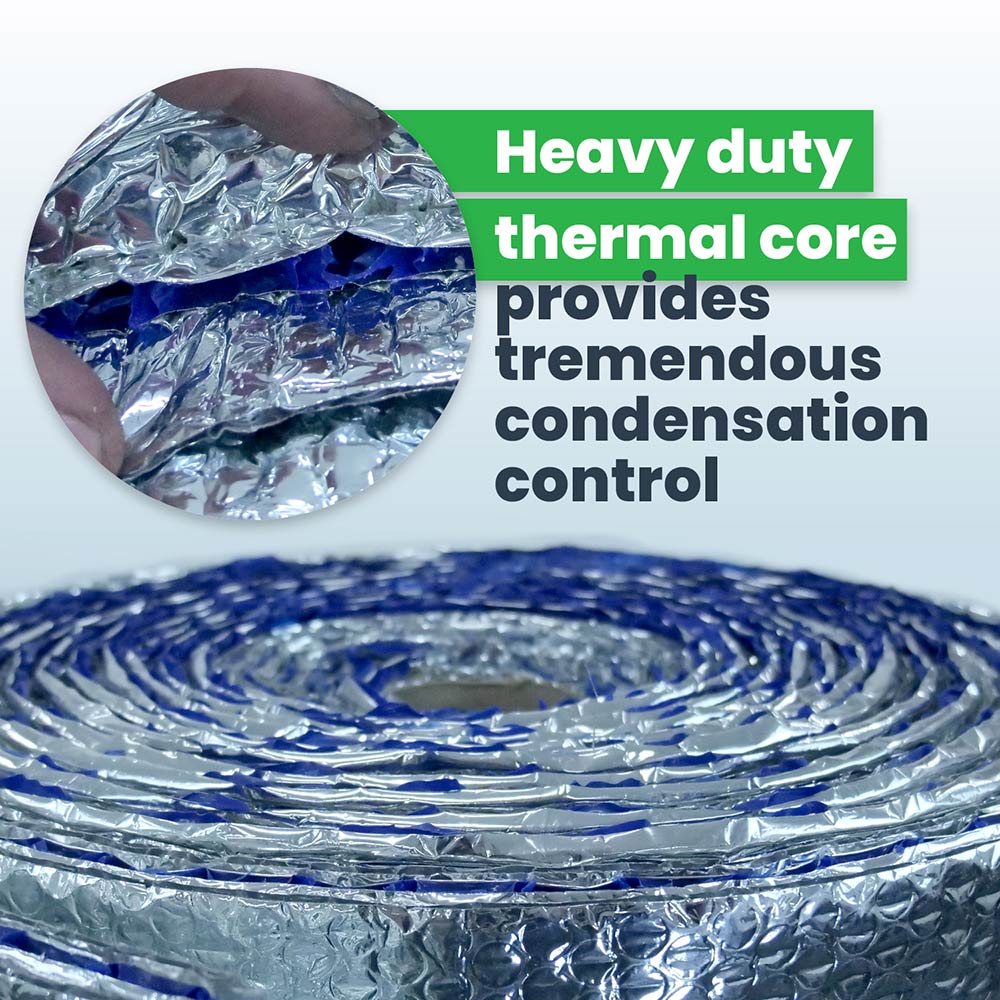

"Big 8" duct insulation is constructed of a triple layer of polyethylene single bubble insulation, with each layer of single bubble insulation bonded to two radiant barrier metalized sheets. The insulation is (9/16" to 5/8") thick with a large single bubble insulation in the center, sandwiched by two thin layers of single bubble insulation. Each roll of insulation duct wrap includes two rolls of spacer strips. In order to achieve the R-8 value the spacer strips must be used and placed every 2' on the ducting. This provides an additional air chamber for the insulation. When combined with the spacer strips the finished thickness is 11/16" to 3/4" thick.

EcoFoil R-8 HVAC Duct Insulation Wrap is meant to be used around any duct work in your home or building. This includes round, rectangular or square ducting. It is NOT rated for exterior use. For installation or technical questions, please call our product specialists at (888) 349-3645 or reference our ductwork insulation page.

Materials:

Constructed of a triple layer of polyethylene single bubble insulation, with each layer of single bubble insulation bonded to two radiant barrier metalized sheets. Our HVAC duct work insulation is approximately 5/8" thick with a large single bubble insulation in the center, sandwiched by two thin layers of single bubble insulation.

10-year limited warranty:

This product carries a manufacturer’s 10-year limited warranty against material defects, including but not limited to de-lamination, surface imperfection, foil corrosion, and air retention. Please note: this warranty does not necessarily cover defects due to improper installation, natural disasters, normal wear and tear, or exposure to chemicals and gasses. View Manufacturer Warranty

Shipping Info:

This product ships FREE via FedEx Ground. Products ship same-day on orders received before 4pm CT and are typically delivered within 2-5 days. Expedited shipping options available. Call us at 888.349.3645 or contact us for more information on shipping options.

Dimensions:

48 in x 50 ft (200 square feet per roll)

~5/8" thick

Installation Tips:

All seams must be taped so the insulation acts as a vapor barrier. The material is flexible and can be installed indoors around square, rectangular, or round ducts. It is not rated for exterior use.

Downloads:

Technical Data Sheet

Material Safety Data Sheet

Brochure

Submittal Package

View full details

Browse more Bubble Foil Insulation

Shop

Great product

Excellent for heating and cooling!

This completely exceeded our expectations. We have a new house with a partial crawl space and a half basement built during COVID. This product was only used on ductwork below the joists in the crawl, everything between the joists was insulated with Rockwool.

The very worst duct in our home was in the second floor loft. In summer it would be 8 degrees warmer than the best ducts and in winter it would be 6 degrees colder despite the fact that it only had 16 feet of uninsulated run from the main supply trunk.

After double checking all of the ductwork the installer had missed sealing the corners of the metal ducts. Doing that brought the temperature difference down to 4 degrees in the summer. After using the foil insulation this duct became the coldest in the entire house during the summer and the warmest now that we are using the heat. It's taking me a while to complete this as I want everything just perfect. I'm redoubling my efforts to get this finished before winter as it's made the house way more comfortable already.

It does reduce the noise noticably as well. Before using it we could hear the HVAC over the TV whenever it would kick on. Now we have to mute the TV to see it it is running. Oddly it also reduced other noises in the house like the dryer and refrigerator. The main HVAC supply and return trunk lines run underneath those so I suspect the noise was echoing through the ductwork.

I looked all over before settling on this product and it has made a huge difference in the comfort level of the house.

Excellent service

Excellent service

Solved my condensation problem

Quality product Excellent customer service

1 2 3

R-8 HVAC Duct Wrap Insulation - 4' x 50' (200 Sq Ft)

Frequently Asked Questions

What is the R-value of this product?

When installed properly, this product has an R-value of 8. Make sure to tape all seams with Premium High Tack HVAC Tape, and use spacer strips (included) to provide an air space between the ductwork and the insulation wrap. You can learn more about installing HVAC Ductwork Insulation here.

Does this product meet code requirements?

Yes, as long as the seams are taped and spacer strips (included) are used. As a bonus, it's stamped and certified with an inspector-friendly code strip attached directly to the material which makes for quick approval.

Are special tools required to install this product?

No. This product is cut easily with scissors or a sharp utility knife. Please note: all seams must be taped to prevent passage of air. Depending on the height of your duct, a step ladder may also come in handy. You can learn more about installing HVAC Ductwork Insulation here.

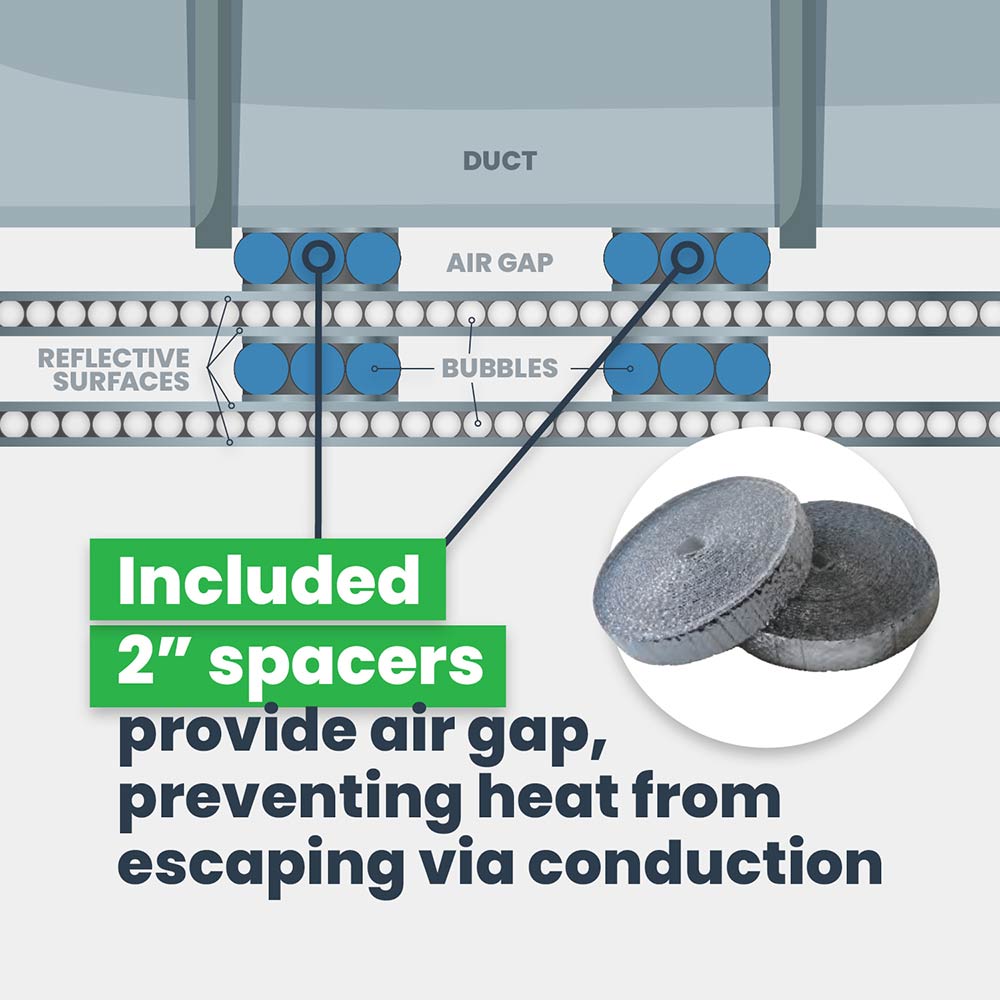

What does the spacer strip do?

The included spacer strips provide an extra air chamber between the ductwork and the radiant barrier. This reduces contact between the surfaces, preventing heat gain/loss and reducing buildup of condensation.

Can I install this product outdoors?

This product is not rated for exterior use. We do not recommend installing this product in outdoor applications.
