Bubble Foil Insulation from EcoFoil
Browse more Bubble Foil Insulation

Ultra CBF Under Slab Insulation - 4' X 75' (300 sq ft)

Ultra CBF Under Slab Insulation - 4' X 75' (300 sq ft)


SKU: EF1620-48-075

Provides thermal barrier under concrete slabs and radiant floors

Regular price $166.00
Regular price Sale price $166.00
Sale Sold out Free Shipping!
We currently have 97 of this product in stock.
Payment methods
Accepted payments:
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships today when you order in the next 5 hours 9 minutes

Product details:

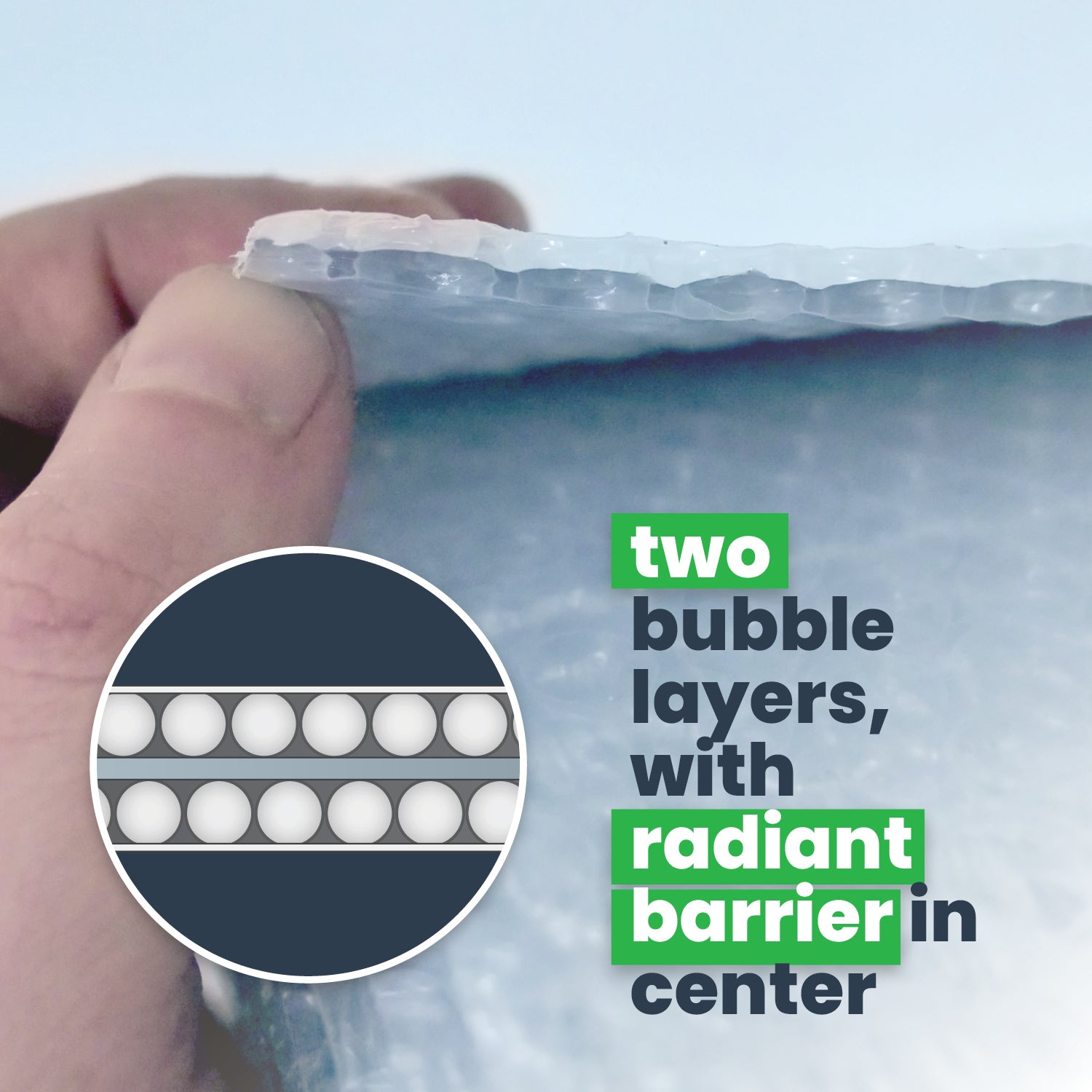

EcoFoil Under Slab Insulation is a patented breakthrough product in the concrete slab insulation industry. It is specifically designed for use as a thermal barrier under concrete and works superbly with radiant heat system. EcoFoil Under Slab Insulation (1/4" to 5/16") thick, is manufactured with a single layer metalized reflective sheet laminated between two layers of strong polyethylene bubbles. EcoFoil Under Slab Insulation has a compression strength of 140 PSI. Our insulation is thin and lightweight, making it easy to conform to your grade and reduces any worry of leaving pockets or voids like traditional insulation.

Unlike traditional bubble insulation, where the foil is exposed, our patented product is encapsulated. This was done for two main reasons; the integrity of the foil and the airspace it creates for effectiveness. If the foil surface comes into direct contact with certain acidic soils it can corrode the reflective properties of the insulation. This can also happen during the curing process of concrete. For this reason, standard radiant barriers or bubble insulation are not an appropriate insulation for an underground application. It is also important to maintain an airspace on one side of the insulation in order for it to be reflective. By laminating the reflective metalized sheet in between two layers of our sturdy bubble insulation we have ensured the integrity of the foil by protecting it from corrosion and deterioration. We are also maintaining an air space by placing the foil in between the bubble layers.

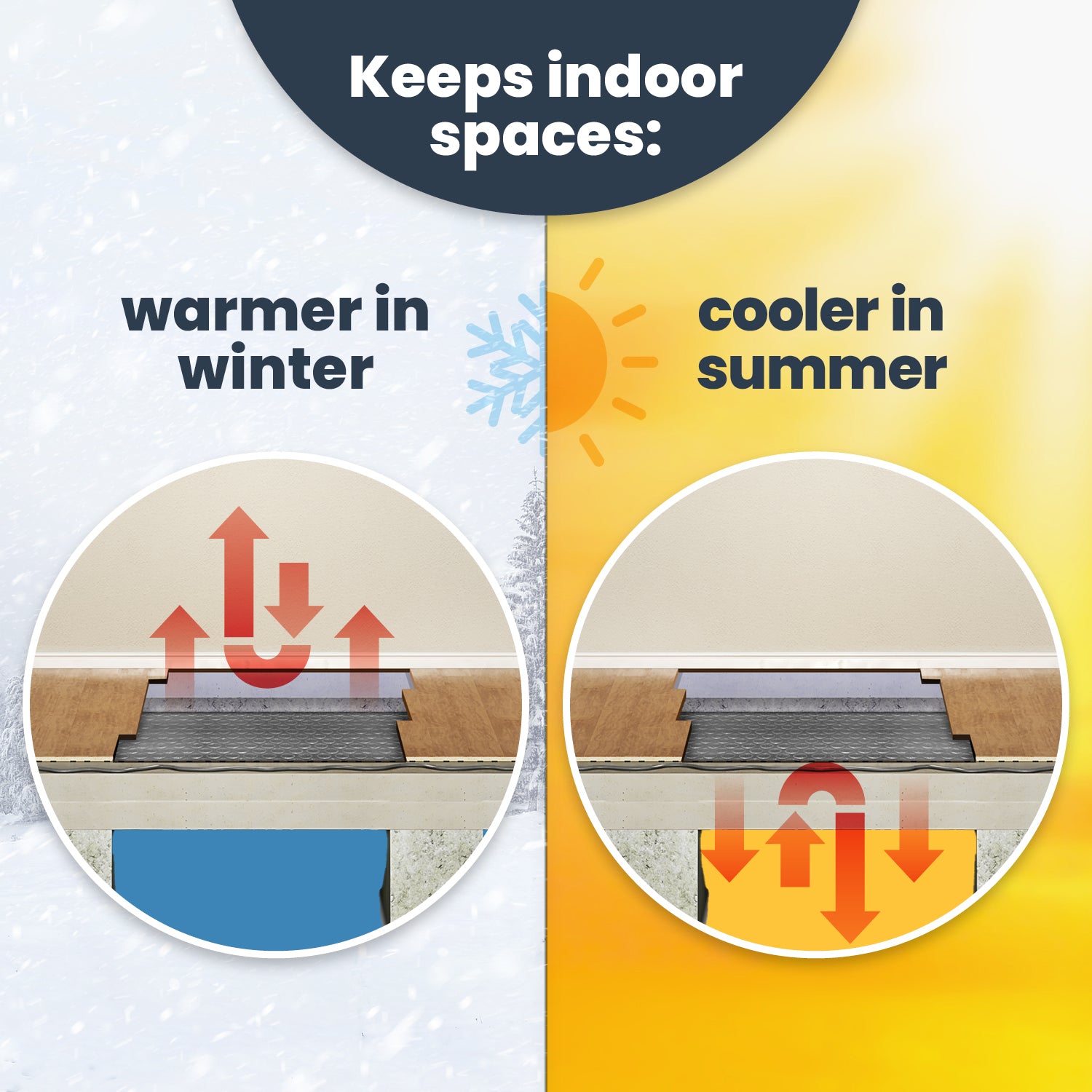

Most importantly, EcoFoil Under Slab Insulation reflects 57% of radiant heat back up towards the surface, whereas without under concrete insulation, this heat would travel down and be lost in the soil. Additional benefits are that EcoFoil Under Slab Insulation provides a vapor and radon barrier.

R-Value Of Radiant Barriers

Rather than rating by R-value, all radiant barrier products are measured by their reflective and emissive properties. Once installed, EcoFoil CBF Under Slab insulation is 57% reflective, meaning the product reflects 57% of radiant heat back to its source. There are some companies out there posting big R-Value numbers for their radiant barriers, but those numbers are rating the entirety of the system—including the product, air gap, and other building materials. In reality, most radiant barriers by themselves have little to no R-Value. If you need to satisfy a building code of a specified R-Value, we recommend the use of a traditional insulation in conjunction with our radiant barrier in order to meet code. For more information on R-values, see our How It Works page or contact a member of our friendly service team via chat, by calling (888) 349-3645, or using the form here.

Important - The seams of EcoFoil Under Slab Insulation must be taped together so when finished the insulation acts like one sheet. We recommend our 3" White Seam Tape for this application. Just like the name implies, this insulation can be used under any concrete slab to reflect 57% of radiant heat.

Materials:

Single layer metalized reflective sheet laminated between two layers of strong polyethylene bubbles. EcoFoil Under Slab Insulation has a compression strength of 140 PSI. Our insulation is thin and lightweight, making it easy to conform to your grade and reduces any worry of leaving pockets or voids like traditional insulation.

10-year limited warranty:

This product carries a manufacturer’s 10-year limited warranty against material defects, including but not limited to de-lamination, surface imperfection, foil corrosion, and air retention. Please note: this warranty does not necessarily cover defects due to improper installation, natural disasters, normal wear and tear, or exposure to chemicals and gasses. View Manufacturer Warranty

Shipping Info:

This product ships FREE via FedEx Ground. Products ship same-day on orders received before 4pm CT and are typically delivered within 2-5 days. Expedited shipping options available. Call us at 888.349.3645 or contact us for more information on shipping options.

Dimensions:

48 in x 75 ft (300 square feet per roll)

~1/4" thick

View full details
Bubble Foil Insulation from EcoFoil
Browse more Bubble Foil Insulation

Customer Reviews

Based on 11 reviews
91%
(10)
0%
(0)
0%
(0)
0%
(0)
9%
(1)
J
Jeff Schritz
1 winter in the books

I found this product while researching "best methods for in floor heat". This is my first heated slab. We are in Montana and typically get 2wk+ of sub zero weather each winter. This floor system was the only working heat in our shop/house through the winter, as I completed the finish work. Without any air circulation, our building maintained T shirt comfortable temps. with both zones set at 63F.
Installed this foil myself with help from the concrete crew. This product lays tight to the contour of your gravel so you can achieve troughs for thickened edge/mono slabs. We taped the seams with HVAC foil tape and added an additional 1.5" of foam board on top of the foil. I left voids in the foam board and gravel bed for added strength under bearing walls. Resulting in apx 8" thick "mono beams" under the bearing walls. This product held up incredibly well through all of this extra traffic prior to the pour. I've not seen a drop of condensation anywhere on this slab even before the boiler was up and running. Great product! And the scraps work awesome for doghouse and chicken coop insulation.

P
Paul Zais

fast delivery

B
Bari Nasary

Ultra CBF Under Slab Insulation - 4' X 75' (300 sq ft)

D
DL Cameron Construction
Arbor ADU

This reflective material was exactly what the project at hand required
Efficient/durable/affordable

C
Cofhbuilder
So far , so good

Arrived on time

    Ultra CBF Under Slab Insulation - 4' X 75' (300 sq ft)

    Frequently Asked Questions

    Will there be voids (or an air gap) between the insulation and the ground?

    No. Unlike traditional, rigid products like foam, Under Slab insulation is flexible and will easily conform to peaks and valleys in the ground. The weight of the concrete will ensure there are no gaps, preventing common problems like cracking in the concrete.

    Does this product work well under pex tubing/radiant flooring?

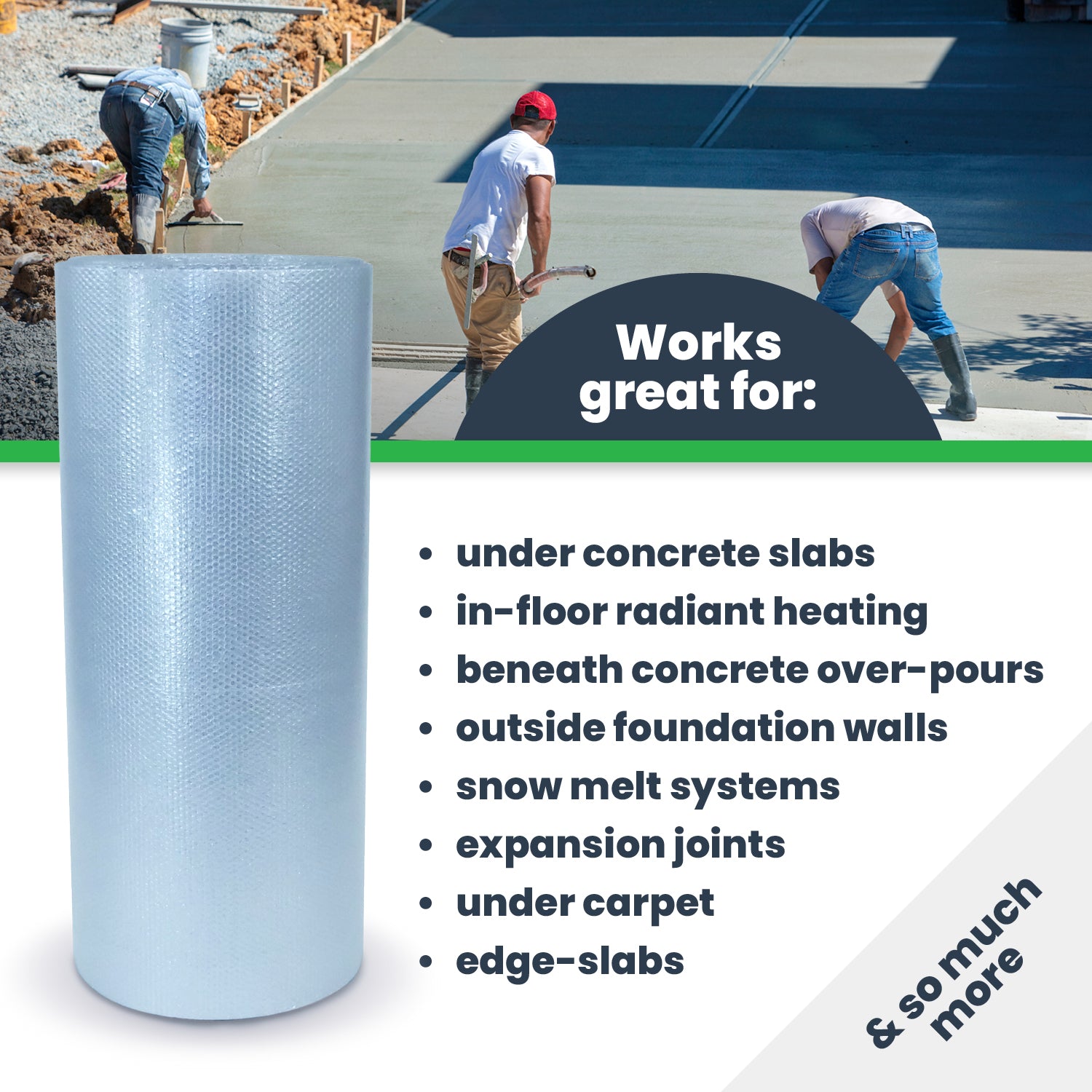

    Yes! This product is the ideal insulation for radiant floor heating in driveways, garages, and basements.

    Will this product work for radiant flooring on upper levels?

    Under Concrete Slab insulation is best for use under concrete—typically basements, garages, driveways, and sidewalks. For wood subfloors on upper levels, it's best to install Between Joist Insulation between the floor joists, or standard Double Bubble Insulation under the floor joists. Learn more about Radiant Floor Insulation here.

    Should I tape the seams?

    Yes. This is an important part of the installation. Without tape, concrete will leak into the seams and the insulation will no longer form a vapor barrier. We recommend metalized insulation tape for most Under Slab applications, but white insulation tape will work as well.

    Should I overlap the product while installing?

    No. As long as each panel is joined edge-to-edge, and all seams are taped, it's not necessary to overlap the Under Slab Bubble Insulation. For more information on how to install bubble insulation under concrete, view our Under Concrete Slab application page.
